BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement

Certification : CE, RoHS

MOQ : 1

Price : 20

Model NO. : BP156TC

Measuring Medium : Air or liquid

Accuracy Grade : 0.5G

Pressure range : 0kpa~10kpa...5MPa

IP Rating : IP65

Pressure Type : Gauge Pressure

Housing Material : 304 SS

Long-Term Stability : 0.1%F.S/Year

Diaphragm Material : 316L

Operating Temperature : -20ºC~80ºC

Storage Temperature : -40ºC~120ºC

Insulation Resistance : 100MΩ 100VDC

Explosion-proof Rating : Ex db IIC T6 Gb

Output Signal : 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V

Supply Voltage : 12~30VDC, 5VDC

Contact Now

BP156TC 4-20mA 0-5V Gauge Air Fuel Oil Water Pressure Sensor Transmitter

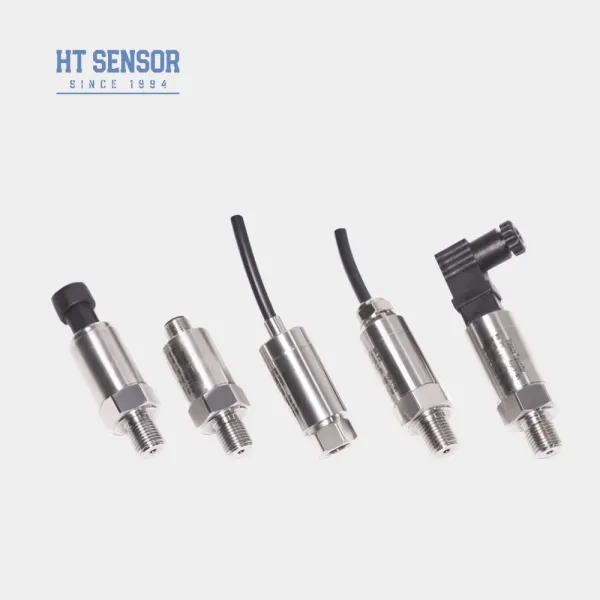

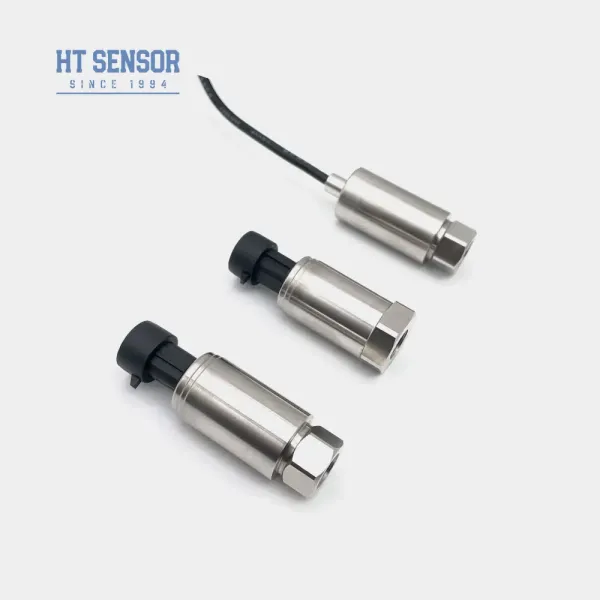

The BP156TC pressure transmitter is a cost-effective solution specifically engineered for air compressors and refrigeration equipment. Incorporating advanced technology and our proprietary high-performance transmitter circuit, this compact device offers exceptional moisture resistance and superior anti-electromagnetic interference capabilities. Rigorous testing and aging selection processes ensure stable, reliable performance across all operating conditions.
BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement
Product Features
  • Wide measuring range with diverse pressure interface options
  • Compact, lightweight stainless steel construction
  • High precision measurement capabilities
  • Robust all-stainless steel structure
Applications
  • Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
  • Marine and aviation industry applications
  • Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range 0kPa ~ 10kPa…20MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.5% (Maximum)
Repeatability & Hysteresis 0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex db IIC T6 Gb
Protection Rating IP65
O-Ring Seal Fluoro rubber
BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement

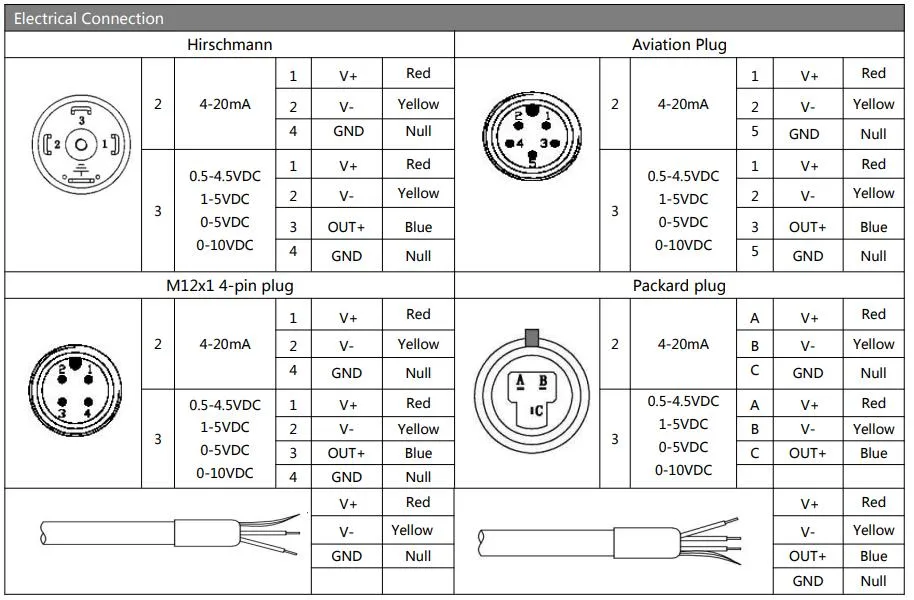

Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0/1~10V
0.5~4.5V		 5VDC
BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement
Selection Examples
BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement
Ordering Information
Ordering Tips
  • Ensure the measured medium is compatible with the product's contact materials
  • Explosion-proof type products do not include digital display heads
  • For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
  • Install lightning protection devices and ensure proper grounding for reliable operation
  • Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
  • Default cable length is 1.5m (polyethylene); specify alternative materials when ordering
  • Notify us of special requirements including vibration, impact force, or electromagnetic interference
BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement
Order Guide
BP15X Analog Pressure Transmitter
Code Outline Construction
5 Packard plug
6 Sealed Direct Output Cable 1.5 meters
7 Mini Hirschmann Connector
8 Large Hirschmann Connector
Additional ordering codes available for measurement range, power supply, output signal, pressure connection, electrical connection, and pressure type configurations.
BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.
What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.
